Compressive Strength Test

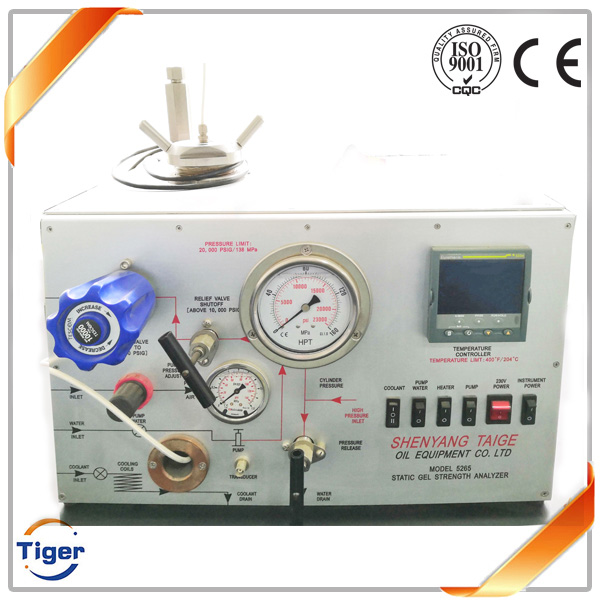

TG-5265 Static Gel Strength Test Analyzer(SGSTA) is designed to measure the gel development and static gel strength of cement slurry samples cured at a simulated down-hole temperature and pressure. TG-5265 SGSTA uses the rotating paddle and a stationary cylindrical slurry cup assembly to condition the cement slurry, by directly measuring the forces required to initiate movement in the slurry, provides the accurate method to determine the static gel strength of cement slurry. TG-5265 SGSTA is equipped with a device for post-test cooling of the instrument. This is an external-cooling jacket attached to the pressure vessel. After completion of the test, cooling water may be circulated through this cooling jacket to cool the pressure vessel.
TG-5265 SGSTA is equipped with state-of-art temperature control and data acquisition system that provides unparalleled ease of use for the operator.
TG-5265 SGSTA has a compact structure: the pressure vessel features its shockproof case-type structure that has undergone years of verification in practice, equipped with a PCB, an industrial microprocessor with superior reliability, special-purpose hardening software, and computer data acquisition system is installed with TG-5270-dedicated application software.
