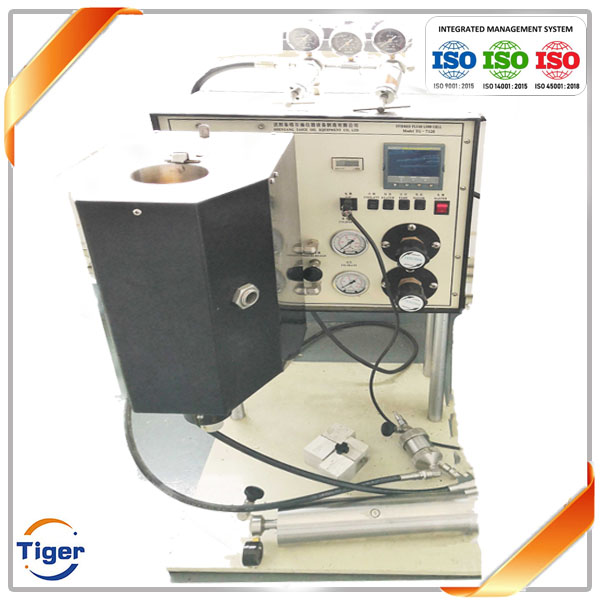

HTHP Stirred Fluid Loss Tester is designed to measure the fluid loss properties of muds and slurries in accordance with API  procedures. The Model 7120 is designed to be as easy to use as possible, with clear and intuitive controls. Once the cement slurry or mud is placed into the test cell, a programmable  temperature controller increases the  temperature  at  the  desired  rate.  The  slurry  is  conditioned  by    stirring  at  150  rpm  similar  to  a  consistometer.  The  cell  is  then  inverted  to  begin  the  fluid  loss  test.    A  graduated  cylinder  or  the  back    pressure    receiver    is    used    to    collect    the    filtrate    for   measurement of the fluid loss characteristics of the slurry.

 Main Configuration

1) Controlling assembly, including:

l  Controlling circuit

l  Temperature controller

l  Thermocouple for acquiring temperature

l  Cooling jacket for cooling slurry

2)   Slurry cup assembly, including:

l  Stainless steel slurry cup for HTHP tests of samples:

l  The cup can rotate under HTHP condition for stirring cement slurry

Specifications

Cylinder Regulator Pressure： 0 – 14 MPa

Filter Regulator Pressure: 0 -1.1MPa

Programmable Temperature Controller: 0 -232℃

Input Voltage: 220V

Heater Power: 0.7KW

Environment Temperature: 16 -32℃

Max. Pressure of Cooling water: 0.2-0.6MPa

Max. Cylinder Pressure: 14MPa/2,000 psi

Slurry Volume: 275ml

Cylinder Volume: 500ml

Filter Press Cylinder Volume: 100ml

Paddle Rotational Speed: 150rpm

Marked Measuring Cylinder Volume: 50ml

Size: 500*650*890mm

Weight: 64kg
