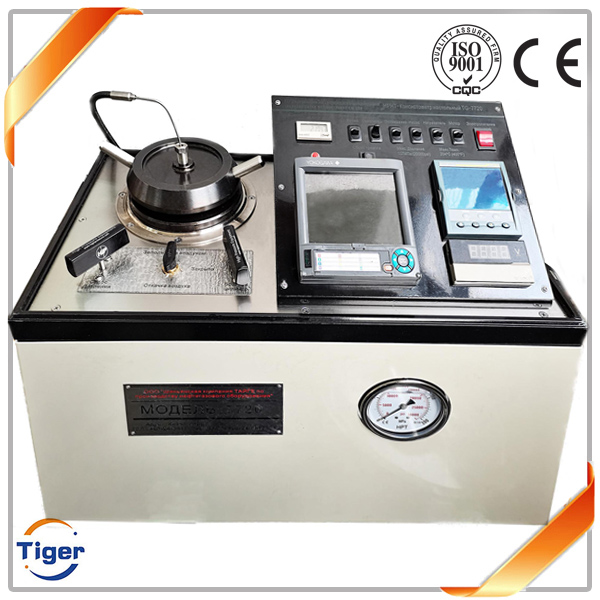

Automated HTHP Benchtop Consistometer

Model:TG-7728

TG-7728 Benchtop Consistometer was specifically engineered to determine the thickening time of well cements under simulated down-hole pressures and temperatures. Its compact &lightweight design makes the unit ideally suited for limited space use, and innovate design-operation panel with automatic lift & fall saves space and is easier to move.

Technical Specifications

• Maximum Pressure: 19,900 PSI (137 MPa)

• Maximum Temperature: 400°F (204.4°C)

• Internal Heater: 4,000 Watt

• Rotational Speed of Slurry Cup: 150 +/-1RPM

• Voltage:230+/-10% Volt, 50/60 Hz

• Size: 67x37x66 cm

• Net Weight: Approx. 200lb (90kg)

Typical Features

• The readout indictors for the viscosity, pressure, and temperature, as well as operational instructions, are easily read from color touch-screen

• Pressure generated via an air-driven hydraulic pump

• Slurry cup table is rotated with a magnetic drive

• Vertical magnetic drive, easy maintenance

• External cooling jacket aids cooling of test cell

• Custom consistency alarm set

• Servo motor is adopted, and the speed control is accurate

• Deadweight calibration unit included

• Safety head with rupture disk are provided

• Fully capable of testing cements in strict accordance to API spec.
