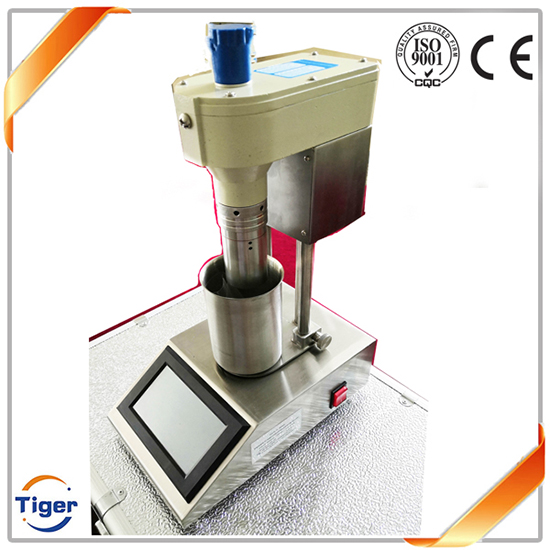

12-Speed Digital Viscometer
TG-ZNN-D12L digital viscometer can measure rheological parameters in a wide range (0-1200mPa. s). It can draw rheological curve according to multi-point measurement values, determine the flow pattern of fluid in the flow process, select appropriate calculation formula, measure non-Newtonian fluid accurately, and be used for research and analysis of rheological parameters of drilling fluid in the field. Meanwhile, it can move forward and cut statically Determination of a series of technical parameters such as force, fluidity index and consistency coefficient. It is conducive to the need of safe, rapid and scientific drilling. It has the characteristics of convenient operation, accurate test and wide measurement range.
Product Description
1. TG-ZNN-D12L digital viscometer can measure rheological parameters in a wide range (0-1200mPa. s). It can draw rheological curve according to multi-point measurement values, determine the flow pattern of fluid in the flow process, select appropriate calculation formula, measure non-Newtonian fluid accurately, and be used for research and analysis of rheological parameters of drilling fluid in the field. Meanwhile, it can move forward and cut statically Determination of a series of technical parameters such as force, fluidity index and consistency coefficient. It is conducive to the need of safe, rapid and scientific drilling. It has the characteristics of convenient operation, accurate test and wide measurement range.
2. This machine adopts high subdivision motor driver and step motor to ensure high torque, accurate and stable rotation speed, synchronous belt drive, low noise and convenient speed regulation.
3. Viscosity measurement adopts imported digital sensor, which is accurate and stable, and has good anti-interference.
II. Model
TG-ZNN-D12L
III. Main technical specifications
|
# |
Name |
Specifications |
|
1 |
power |
220V±5%, 50Hz |
|
2 |
Scope of speed |
1, 2, 3, 6, 10, 20, 30, 60, 100, 200, 300, 600r/min |
|
3 |
Speed ladder |
1.7,3.4,5.1,10.2,17,34,51,102,170,340,511,1022 S-1 |
|
4 |
Accuracy |
1-25 mPa.s, ±1% mPa.s（ Newtonian fluid ） over 25mPa.s, ±4% mPa.s （ Newtonian fluid ） |
|
5 |
Viscosity measurement range |
Newtonian fluid ： 0-1200mPa.s (F1-4 Measuring components ) Non-Newtonian fluid：1-600mPa.s (F1-4 Measuring components ) Shear stress ： 0 - 613.2Pa (F1-4 Measuring components ) |
